PLC 4 Analog Inputs RTD, expansion module

PLC 4 Analog Inputs RTD, expansion module

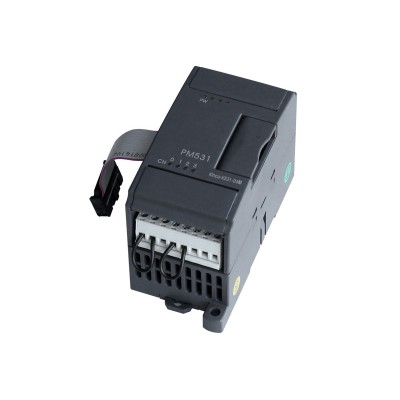

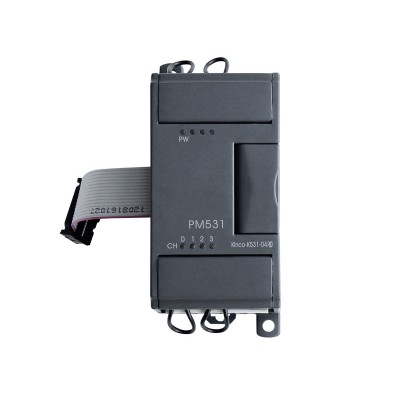

PLC Extension Module - 4 Analog Inputs RTD

K531-04RD

Online only

By buying this product you can collect up to 76 loyalty points. Your cart will total 76 points that can be converted into a voucher of 7,60 lei.

6 other products in the same category:

More info

PLC Extension Module - 4 Analog Inputs RTD

Input channel    4
Input signal    Pt100, Cu50, Pt1000, Cu100, Resistor are selectable, 2-wire or 3 wire
Measurement range    Pt 100 -200~850℃, Cu50 -50~150℃, Pt1000 -50~300℃, Resistor 0~700Ω
Measurement accuracy    Temperature ±0.5℃, Resistance ±1Ω
Parameter configuration    Independent parameter configuration can be made for each channel by KincoBuilder software
Error indication    Red LED of each channel indicates input signal exceeds measurement range
Module width    50mm
