PLC Extension Module - with 16 Digital Inputs

K521-16DX

448,77 lei

Add to cart

By buying this product you can collect up to 44 loyalty points. Your cart will total 44 points that can be converted into a voucher of 4,40 lei.

6 other products in the same category:

More info

PLC Extension Module - with 16 Digital Inputs

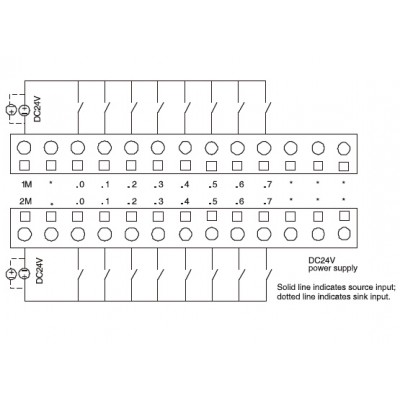

Input points    16, divided into 2 groups, each group with 8 channels.
Input type    source Source (common-cathode)/sink (common-anode)
Input voltage    Rated DC24V, voltage range of logic "1" is DC11~30V
Isolation mode: Opto-electrical isolation between input signal and internal circuit, isolation voltage 500VAC/1 min
Signal indication    Separated LED indicates for each channel
Module width    75mm
