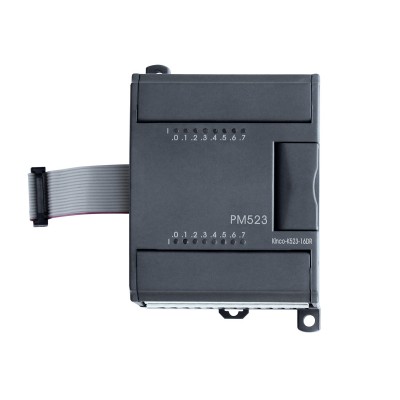

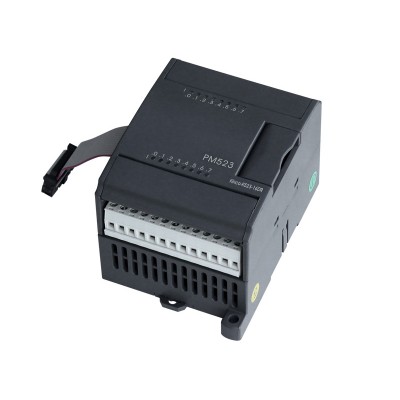

PLC 8 Digital Inputs and 8 Digital Outputs Relay, expansion module

PLC 8 Digital Inputs and 8 Digital Outputs Relay, expansion module

PLC Extension Module - 8 Digital Inputs and 8 Digital Outputs Relay

K523-16DR

513,28 lei

Add to cart

By buying this product you can collect up to 51 loyalty points. Your cart will total 51 points that can be converted into a voucher of 5,10 lei.

6 other products in the same category:

More info

PLC Extension Module - 8 Digital Inputs and 8 Digital Outputs Relay

I/O point    8, totally classified into 1 group
Input type    Source (common-cathode)/sink (common-anode)
Input voltage    Rated DC24V, voltage range of logic "1" is DC11~30V
Output type    Relay
Load voltage    Max. DC30V/AC250V, max. load current of each channel is 2A
Isolation mode    DI channels adopt opto-electrical isolation, DO channels adopt relay isolation
Signal indication    Separated LED indicates for each channel
Module width    75mm
