PLC Extension Module - with 16 Digital Outputs Transistor
By buying this product you can collect up to 60 loyalty points. Your cart will total 60 points that can be converted into a voucher of 6,00 lei.

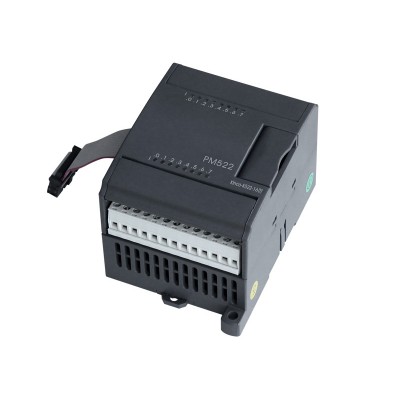

PLC Extension Module - with 16 Digital Outputs Transistor

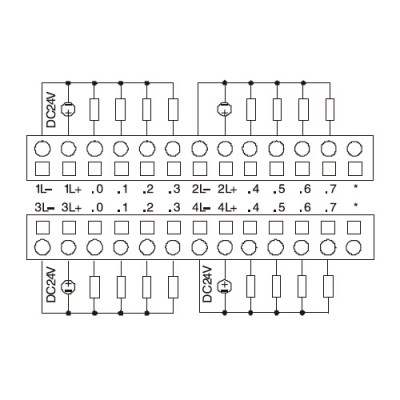

Output points 16, divided into 4 groups, each group with 4 channels
Output type source (common-cathode)
Output voltage Rated DC24V, max. output current of each channel is 500mA
Circuit protection Power supply access polarity protection, output short-circuit protection, inductive load protection
Isolation mode Opto-electrical isolation between input signal and internal circuit, isolation voltage 500VAC/1 min
Signal indication Separated LED indicates for each channel
Module width 75mm
