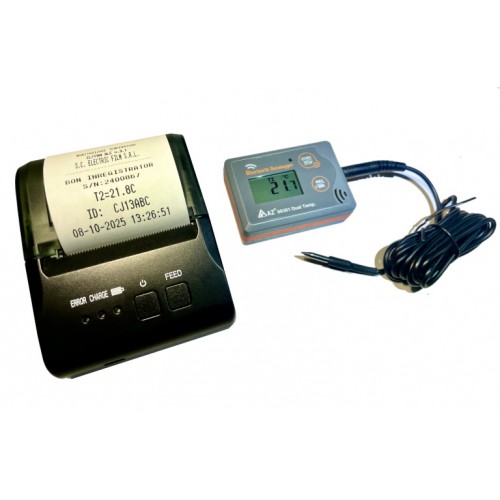

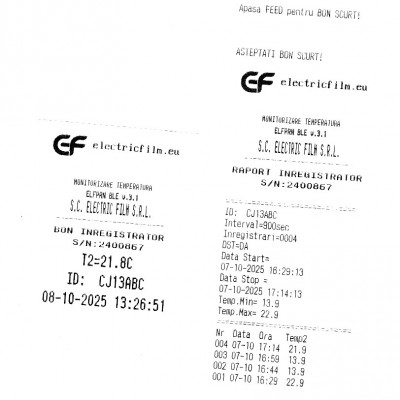

Portable Thermodiagram with Bluetooth version 3 allows printing SHORT RECEIPT and DETAILED REPORT.

The printer can re-program the Bluetooth recorder for recording.

It downloads the data from the recorder and prints it in reverse date order using only the start button.

Use a temperature recorder with one or two channels, or a temperature and humidity recorder.

The printer can be used for cold rooms, warehouses, for refrigerated vans.

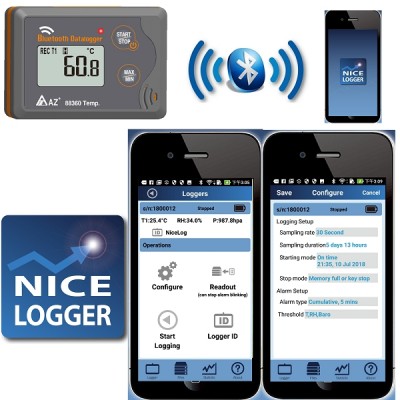

The printer can re-program the Bluetooth recorder to record with the previously set recording interval from the APP. The current date and time and identifier are set only once or when changing the battery. The recorder settings can be password protected, which also ensures the protection of the recorder.

Prints the thermodiagram for the transport of medicines or perishable products, can be used in a warehouse, box or other storage container; with the purpose of tracking the transport, in the pharmaceutical industry, hospital, laboratory, factory or other industrial environment. It can be the best tool for quality control requirement.

The printer uses a thermal paper roll (56mm x 18m). The printer works with power from its own battery.

Video:

Working:

Logger set:

Logger download:

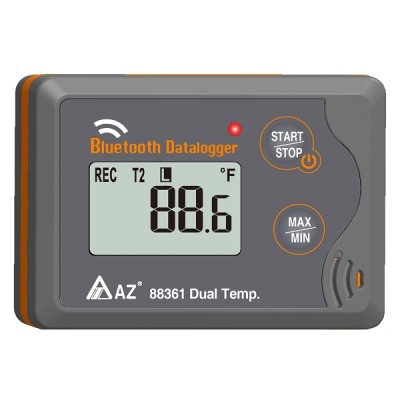

Specification of 88361 Bluetooth 4.0 In/Out

Temperature Range: NTC Thermistor, -30~70℃, -22~158℉
Temperature Resolution: 0.1℃, 0.1℉
Temperature Accuracy ±0.5℃

Ext. Temperature Range: NTC Thermistor, -30~70℃, -22~158℉

Ext. Temperature Resolution: 0.1℃, 0.1℉
Ext. Temperature Accuracy: ±0.5℃
Sampling Points 24K:Int, 24K:Ext
Meter Size 70(L) * 50(W) * 23(H) mm
LCD Size 30(L) * 18(W) mm
Operating Temperature -30~70℃
Operating RH% Humidity ＜90%
Storage Temperature -40~85℃
Storage RH% Humidity ＜90%
Weight ~70g
Battery 1PC 3.0V CR2, 3 months life times
Sampling Interval 10 seconds to 120 minutes
Start Delay 0~1440 minutes, 10 mins/step
Alarm Range Programmable from -30 to 70℃
Alarm Delay 0~720 minutes, 5 mins/step
Alarm Type Single Event, Cumulative, Disable
Operation Keys 2 Keys (Start/Stop Key & Max/Min Key)
LED Indicator REC, High /Low Alarm
Standard Package
Logger, Battery, Manual, Paper Box
Optional Accessory VZ87P6AZ1 or VZ87P6AZ2 external temperature probe (for 88361 only)
