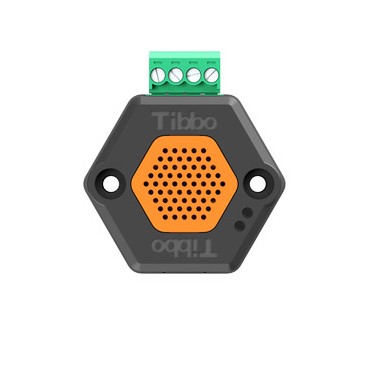

3-axis accelerometer, with RS485 interface, standard ModBus RTU protocol.
By buying this product you can collect up to 28 loyalty points. Your cart will total 28 points that can be converted into a voucher of 2,80 lei.
Specifications:
Half-duplex (two-wire) RS485 interface.
Communications parameters: 38400-8-N-1.
Modbus RTU protocol.
Independent X, Y, and Z axes;
Measurement range for each axis: ±6G;
Measurement resolution for each axis: 0.003G;
Measurement accuracy for each axis: 0.1G.
Green and red status LEDs.
Power: 4 ~ 15VDC.
Dimensions excluding connectors (LxWxH): 40 x 36 x 19mm.
Operating temperature range: -40 ~ +85C.
Internal firmware is upgradeable through the RS485 port.
CE- and FCC-certified.
