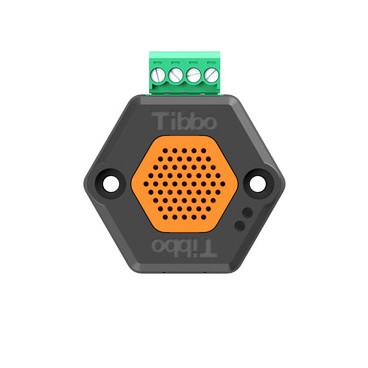

Ambient temperature and humidity sensor, with RS485 interface, standard ModBus RTU protocol.
By buying this product you can collect up to 48 loyalty points. Your cart will total 48 points that can be converted into a voucher of 4,80 lei.
Specifications:
Half-duplex (two-wire) RS485 interface.
Communications parameters: 38400-8-N-1.
Modbus RTU protocol.
Temperature measurement:
Measurement range: -25 to +50°C;
Measurement resolution: 0.5°C;
Measurement accuracy: not specified.
Humidity measurement:
Measurement range: 10 to 90%RH;
Measurement resolution: ±0.1%RH;
Measurement accuracy: ±5%RH;
Temp. range for valid humidity measurements: +5 to +50°C.
Green and red status LEDs.
Power: 4 ~ 15VDC.

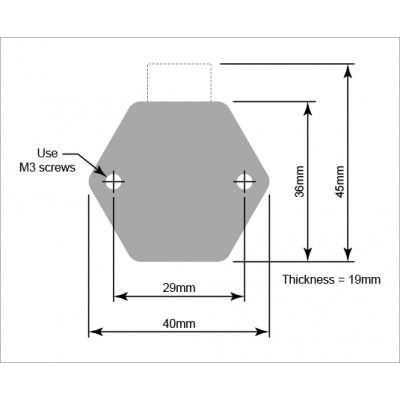

Dimensions excluding connectors (LxWxH): 40 x 36 x 19mm.
Operating temperature range: -40 ~ +85C.
Internal firmware is upgradeable through the RS485 port.
CE- and FCC-certified.
* The actual measurement range is limited by the operating temperature range of the Bus Probe itself, which is from -40 to +85°C.
