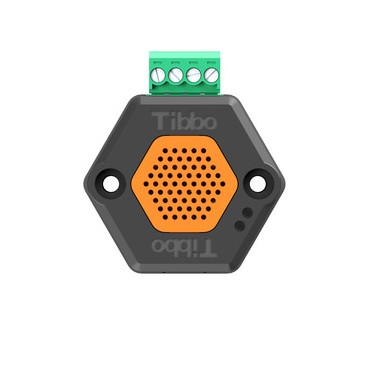

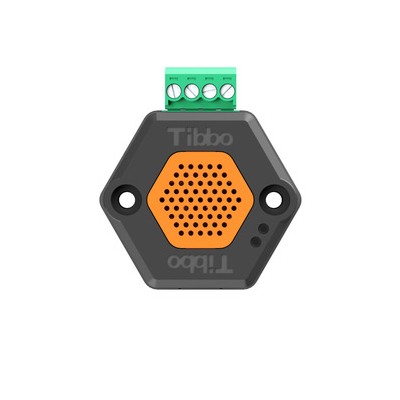

Ambient temperature sensor, with RS485 interface, standard ModBus RTU protocol.
By buying this product you can collect up to 27 loyalty points. Your cart will total 27 points that can be converted into a voucher of 2,70 lei.
Specifications:

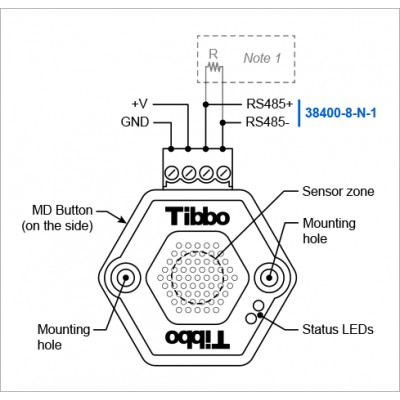

Half-duplex (two-wire) RS485 interface.
Communications parameters: 38400-8-N-1.
Modbus RTU protocol.
BP#01 (ambient temperature sensor):
Measurement range: -40 to +125°C*;
Measurement resolution: 0.25°C;
Measurement accuracy: ±1°C.
Green and red status LEDs.
Power: 4 ~ 15VDC.

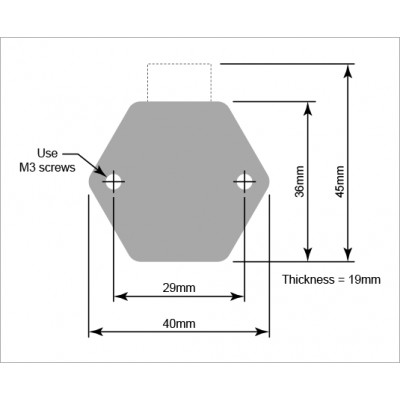

Dimensions excluding connectors (LxWxH): 40 x 36 x 19mm.
Operating temperature range: -40 ~ +85C.
Internal firmware is upgradeable through the RS485 port.
CE- and FCC-certified.
* The actual measurement range is limited by the operating temperature range of the Bus Probe itself, which is from -40 to +85°C.
