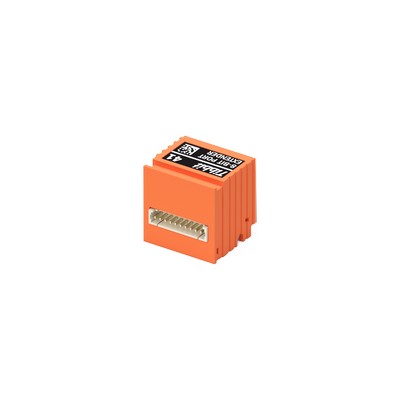

8-bit port
8-bit port (supplied with 200mm cable).
By buying this product you can collect up to 15 loyalty points. Your cart will total 15 points that can be converted into a voucher of 1,50 lei.
8-bit port (supplied with 200mm cable)
8-bit port (supplied with 200mm cable).
Details
Form: C1
Power:
5V - Consumes 40mA
Mates with: #00_3
Details

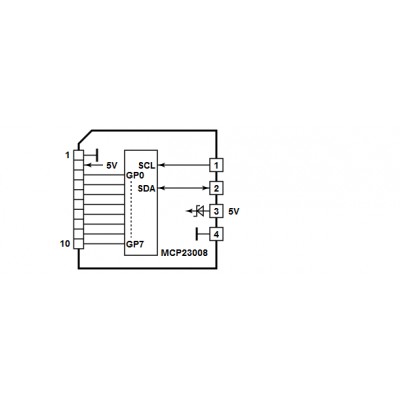

This Tibbit is based on the MCP23008 8-bit port expander IC from Microchip. Refer to Microchip datasheet for operation details.
This C1 device requires the Tibbit #00-3 to be installed in the neighboring "M" Tibbit socket.
To simplify wiring, Tibbit #41 is supplied with a 200mm WAS-P044 cable.
Sample project
The use of this Tibbit is illustrated by a Tibbo BASIC test project. Yo can find it here: https://github.com/tibbotech/CA-Test-Tibbit-41.
