Form: M1S
Power:
5V - Consumes 10mA
Mates with: #19, #20, #21
Details

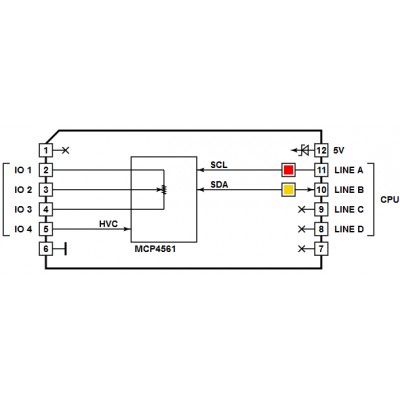

The Tibbit is based on the MCP4561 digital POT IC from Microchip. This IC has an 8-bit resolution. Refer to Microchip datasheet for operation details.
LEDs
There is one red and one yellow LED. The red LED is connected to the SCL line of the I2C interface, the yellow LED — to the SDA line.
Sample project
The use of this Tibbit is illustrated by a Tibbo BASIC test project. Yo can find it here: https://github.com/tibbotech/CA-Test-Tibbit-40.
