IR receiver/transmitter with I2C interface
By buying this product you can collect up to 18 loyalty points. Your cart will total 18 points that can be converted into a voucher of 1,80 lei.
Specifications:
Contains the same IR receiver and transmitter as Tibbit #27;
The Tibbit contains Vishay TSMP6000 infrared photo detector and TSAL6100 infrared emitter
Mates with Tibbit connectors #20/#21, and Tibbit module #26.
Two versions: without mounting ears and with mounting ears.
Supplied with a 100cm cable.
Power: 5VDC±10%.

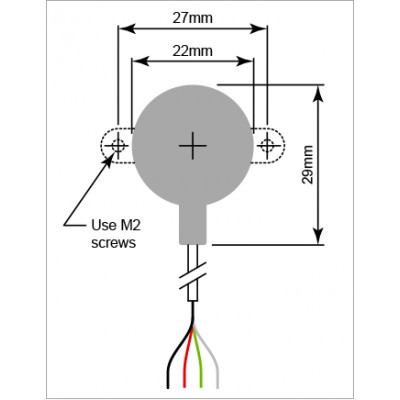

Dimensions (LxWxH):
Without mounting ears: 22 x 29 x 12mm;
With mounting ears: 36 x 29 x 12mm.
Operating temperature range: -40 ~ +85C.
