I2C Ambient temperature sensor

I2C Ambient temperature sensor

Ambient temperature sensor with I2C interface

CP#01

119,53 lei

Add to cart

By buying this product you can collect up to 11 loyalty points. Your cart will total 11 points that can be converted into a voucher of 1,10 lei.

3 other products in the same category:

More info

Specifications:

I2C interface;
Based on the same MCP9808 IC as Tibbit #29;
Mates with Tibbit connectors #20/#21, and Tibbit module #00-3;
Measurement range: -40 to +125°C;
Measurement resolution: 0.25°C;
Measurement accuracy: ±0.25°C.

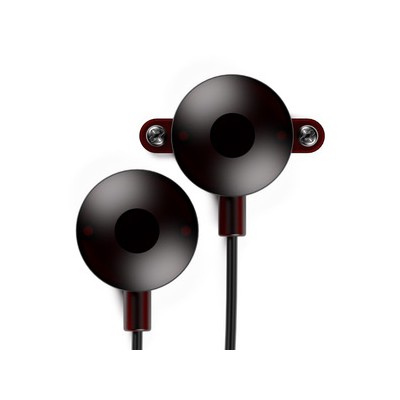

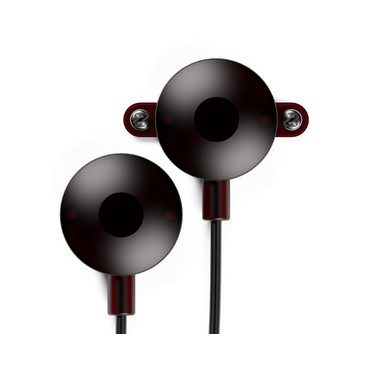

Two versions: without mounting ears and with mounting ears.
Supplied with a 100cm cable.
Power: 5VDC±10%.

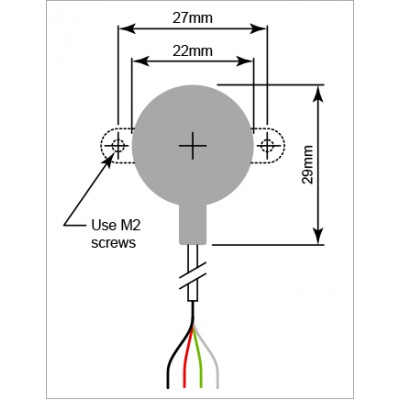

Dimensions (LxWxH):
Without mounting ears: 22 x 29 x 12mm;
With mounting ears: 36 x 29 x 12mm.
Operating temperature range: -40 ~ +85C.
