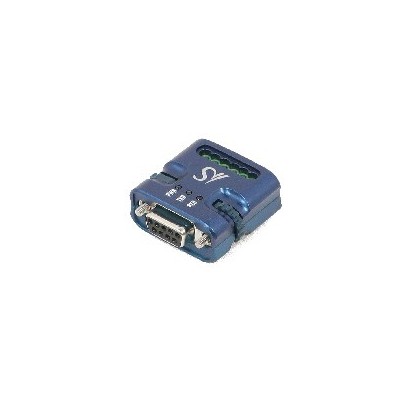

RS232 to RS422/RS485 Converter, Auto Toggling Support, mini

RS232 to RS422/RS485 Converter, Auto Toggling Support, mini

RS232 to RS422/RS485 Converter, Auto Toggling Support CS-428/9AT-mini Mode : Asynchronous serial communication
Speed : Up to 115.2 Kbps
Di

CS-428/9AT - mini

-10%

238,02 lei

On sale On sale!

214,22 lei

Add to cart

By buying this product you can collect up to 21 loyalty points. Your cart will total 21 points that can be converted into a voucher of 2,10 lei.

Customers who bought this product also bought:

7 other products in the same category:

More info

RS232 to RS422/RS485 Converter, Auto Toggling Support CS-428/9AT-mini Mode : Asynchronous serial communication
Speed : Up to 115.2 Kbps
Distance : Max. 1.2Km @115.2Kbps,24AWG twisted pair cable
Connector : RS232 : DB9 Female (Male : optional); RS422/485 : Terminal Block 5P
Signals : TXD, RXD, RTS, CTS, GND for RS232
Protection : 15KV Surge Protection for all signals
Data Bits : 5, 6, 7, 8
Stop Bits : 1, 1.5, 2
Parity : None, Even, Odd, Space, Mark
RS422 mode : Point-to-Point, Multi-Drop
RS485 mode : Echo, Non-Echo
RTS Control : CS-428/9AT : Auto Toggling
Switch : CS-428/9AT : RS422/485 mode switch
Software
: No Software Required
Power Input : 7~12VDC
Power Consumption : 0.4W (33mA@12V)
LED : Power, TX, RX
Dimensions : 39(W)x38(H)x16(D)mm
Weight : 33g
Enclosure : Plastic (Blue Color)
Operating Temp : 0 ~ 55grdC
Storage Temp : -20~70grdC
Humidity : 5 ~ 95% Non-Condensing
Approvals: CE Class A, FCC Class A, RoHS Compliant
