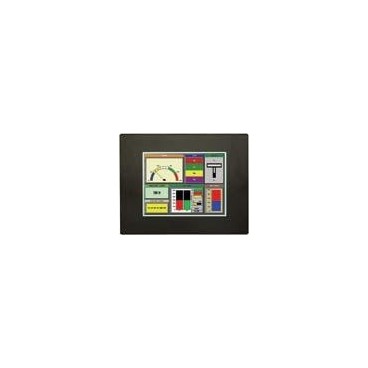

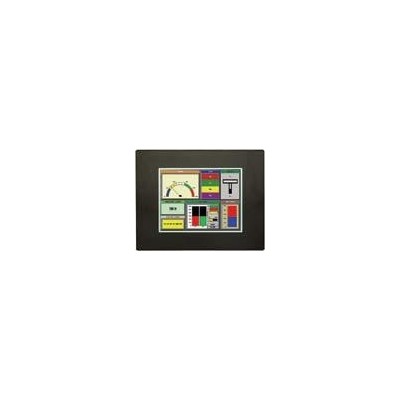

EZSeries Touchpanel, 8inch STN Color Display

EZSeries Touchpanel, 8inch STN Color Display

PLC port: MODBUS TCP/IP interface and RS232, RS422, RS485
MODBUS TCP/IP and all the serial drivers listed in Extended Info are supported
8.2

EZP-S8C-FT

13 698,20 lei

Add to cart

By buying this product you can collect up to 1369 loyalty points. Your cart will total 1369 points that can be converted into a voucher of 136,90 lei.

18 other products in the same category:

More info

PLC port: MODBUS TCP/IP interface and RS232, RS422, RS485
MODBUS TCP/IP and all the serial drivers listed in Extended Info are supported
8.2inch STN Color Display
128 colors
640x480 pixel resolution
192 touch cells (16x12)
512K RAM (expandable to 1.5MB)
Accepts optional 512K, 1MB or 2MB compact flash cards
Supply Voltage 20 - 30 VDC
IP 65 (NEMA 4) Front
L x H x D = 277 x 222 x 59 mm
EZP-PANEL-M manual included with the panel
