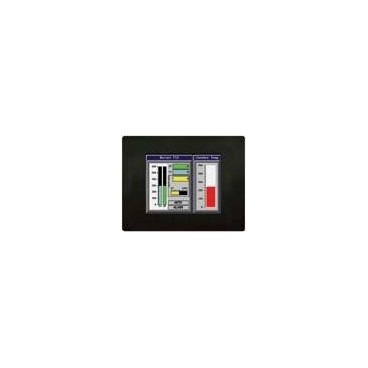

EZSeries Touchpanel, 6inch STN Color Display

EZSeries Touchpanel, 6inch STN Color Display

PLC port: DeviceNet interface and RS232, RS422, RS485
DeviceNet and all the serial drivers listed in Extended Info are supported
5.7inch STN

EZP-S6C-FSD

12 719,06 lei

Add to cart

By buying this product you can collect up to 1271 loyalty points. Your cart will total 1271 points that can be converted into a voucher of 127,10 lei.

19 other products in the same category:

More info

PLC port: DeviceNet interface and RS232, RS422, RS485
DeviceNet and all the serial drivers listed in Extended Info are supported
5.7inch STN Color Display
128 colors
320x240 pixel resolution
192 touch cells (16x12)
512K RAM (expandable to 1.5MB)
Accepts optional 512K, 1MB or 2MB compact flash cards
Supply Voltage 20 - 30 VDC
IP 54 (NEMA 1) Front
L x H x D = 205 x 156 x 62 mm
EZP-PANEL-M manual included with the panel
