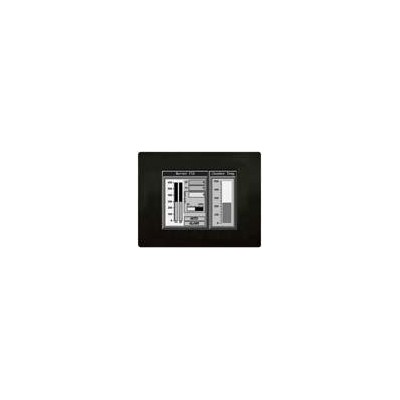

EZSeries Touchpanel, 6inch monochrome Display

EZSeries Touchpanel, 6inch monochrome Display

PLC port: RS232, RS422, RS485
All the serial drivers listed in Extended Info are supported
5.7inch monochrome Display
16 shades of gray

EZP-S6M-FS

4 396,35 lei

Add to cart

By buying this product you can collect up to 439 loyalty points. Your cart will total 439 points that can be converted into a voucher of 43,90 lei.

12 other products in the same category:

More info

PLC port: RS232, RS422, RS485
All the serial drivers listed in Extended Info are supported
5.7inch monochrome Display
16 shades of gray
320x240 pixel resolution
192 touch cells (16x12)
512K RAM (expandable to 1.5MB)
Accepts optional 512K, 1MB or 2MB compact flash cards
Supply Voltage 20 - 30 VDC
IP 54 (NEMA 1) Front
L x H x D = 205 x 156 x 62 mm
EZP-PANEL-M manual included with the panel
