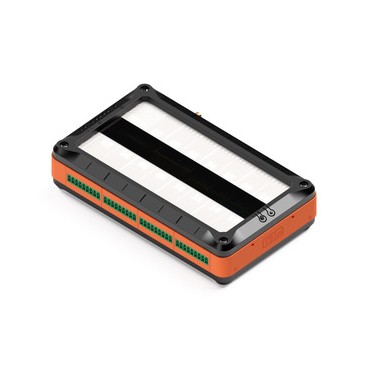

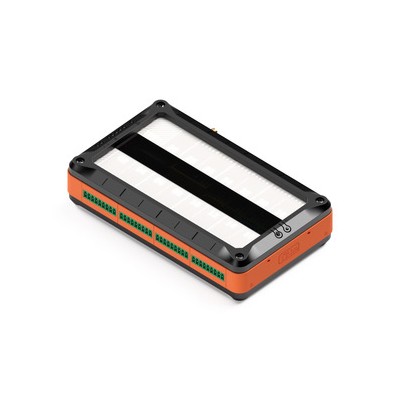

Modbus Gateway with 4 x RS232/422/485 ports

Modbus Gateway with 4 x RS232/422/485 ports

Modbus Gateway with 4 x RS232/422/485 ports

Tibbo's Modbus protocol converter routes Modbus messages between masters and slave Modbus TCP, Modbus ASCII and Modbus RTU. The following configuration implements Modbus gateways with 4 full serial RS232 / RS422 / RS485 selectable serial ports.

2 107,00 lei

Add to cart

By buying this product you can collect up to 231 loyalty points. Your cart will total 231 points that can be converted into a voucher of 23,10 lei.

1 other products in the same category:

More info

Tibbo's Modbus protocol converter routes Modbus messages between masters and slave Modbus TCP, Modbus ASCII and Modbus RTU. The following configuration implements Modbus gateways with 4 full serial RS232 / RS422 / RS485 selectable serial ports.

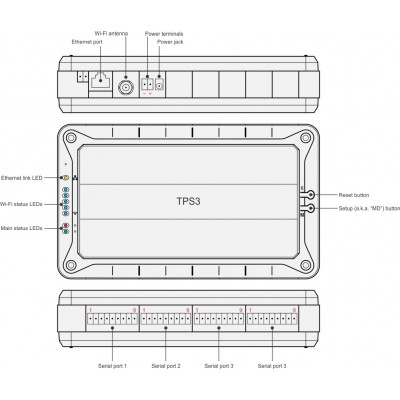

The following is a list of features offered by compatible Tibbo devices running the Modbus Gateway app:

•100/10Mb Ethernet port.

•Optional Wi-Fi port:

+Support for WEP/WPA/WPA2 security.

+Automatic switchover to the Wi-Fi port whenever the Ethernet interface becomes inactive (the Ethernet cable is unplugged).

•Selection of static IP or IP configuration via DHCP.

•Serial ports:

▪Up to four RS232/422/485 ports;

▪Baudrates of up to 460,800bps;

▪Optional RTS/CTS flow control.

•Support for up to 8 TCP masters and up to 4 TCP slaves.

•Flexible routing:

+Routing of Modbus TCP, Modbus RTU, and Modbus ASCII messages in any direction:

▪Modbus TCP --> Modbus RTU or ASCII;

▪Modbus RTU or ASCII --> Modbus TCP;

▪Modbus TCP --> Modbus TCP;

▪Modbus RTU or ASCII --> Modbus RTU or ASCII.

+Slave ID-based routing (works for all types of Modbus Masters);

+TCP port-based routing (for Modbus TCP Masters only); four ports are available;

+Slave ID shifting.

•Support for Modbus exceptions:

oTimeout exception;

oRouting error exception.

•Configuration:

+Via the DS Manager utility;

+Via the web interface.

•Status indication:

+Using LEDs;

•Operation monitoring:

+Gateway configuration can be monitored using SNMP protocol;

+Gateway activity and byte-level flow can be monitored using IO Ninja software running a specially designed plugin.

•12V or 24V power; Optional PoE power.
